Hydraulic Pile Breaker – Efficient Concrete Pile Cutting Machine, Advantages & Full Construction Applications

Pile foundation serves as the load-bearing base of high-rise buildings, highway bridges, high-speed rails and municipal subway projects. After pile pouring, surplus pile heads must be removed uniformly. Traditional construction methods including manual jackhammer and heavy breaker suffer from low productivity, violent vibration, damaged steel reinforcement and severe noise pollution. Hydraulic pile breaker, adopting modular hydraulic compression technology, has become the standard pile cutting equipment for infrastructure projects worldwide, with stable high search volume on Google construction machinery industry channels.

1. Working Principle of Hydraulic Pile Breaker

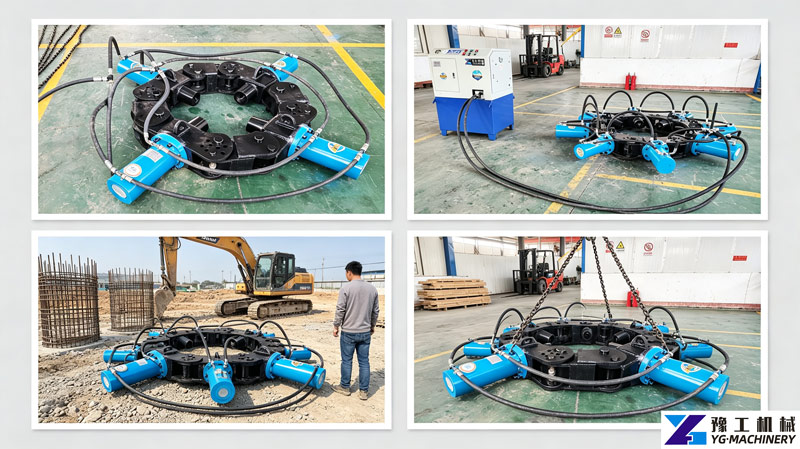

A complete pile breaker consists of multiple hydraulic cylinders, wear-resistant compression modules and lifting chains, which can be mounted on excavators or matched with independent hydraulic power stations. When the machine covers the pile head, synchronous cylinders apply balanced pressure to crack concrete evenly, breaking pile tops while keeping steel bars intact without secondary cutting. Users can add or remove modules freely to fit round piles (400mm-2500mm diameter) and square precast piles (300-650mm side length), realizing one machine for most pile specifications.

2. Five Core Advantages of Pile Breaker

• Dramatically Improved Efficiency: Only 5-10 minutes to finish one pile head. For dense pile groups, construction period is cut by half, daily processing capacity 3-6 times higher than manual work, greatly cutting labor expenditure.
• Safe & Eco-Friendly Operation: No blasting, flying debris, strong vibration or loud noise. It meets noise control rules for urban residential areas, subway sites without disturbing surrounding soil structure.
• Perfect Pile Section Quality: Balanced compression avoids bent steel bars, flat cut surfaces fully meet engineering inspection standards and eliminate extra reinforcement rework.
• Wide Compatibility: Fits excavators over 20 tons directly. Split hydraulic power stations support narrow foundation pits, flexible transfer for bridge and underground pipe gallery sites.
• Low Maintenance Cost: Heat-treated alloy steel drill bits with strong wear resistance, low failure rate. Separate replaceable modules extend total service life to over 5 years.

3. Main Construction Scenarios for Pile Breaking Machine

• Commercial & Residential Building Projects: Fast mass pile cutting for basement cast-in-place piles of apartments and shopping malls.
• High-Speed Railway & Highway Bridges: Precise pier foundation cutting to satisfy strict bridge acceptance codes.
• Municipal Subway & Tunnel Works: Demolish enclosure piles and shield starting shaft piles, complying with urban green construction regulations.
• Water Conservancy & Port Projects: Modify dock piles and reservoir anti-seepage piles, stable performance under complex outdoor geological conditions.

4. Key Selection Indicators for Pile Breaker

Three core parameters to confirm before purchasing or renting: pile shape (round/square), pile diameter and matched excavator tonnage. 6-8 module models suit piles within 1m diameter; 10-16 module combinations for large-diameter piles. Split hydraulic station types are recommended for narrow urban sites, while excavator-mounted versions work best for large open-air foundation projects.

Conclusion

Global urbanization and infrastructure renewal drive stricter standards for green and high-efficiency construction. Pile breaker is replacing rough traditional pile cutting techniques rapidly. For general contractors, equipment rental companies and machinery purchasers, modular hydraulic pile breakers are essential equipment to shorten schedules, reduce construction risks and comply with environmental policies. Proper model selection can greatly raise overall project profits.
